Design pressure | -0.1~0.3Mpa | Design temperature | 144℃ |
Working pressure | 0.245Mpa | Working temperature | 105-138℃ |
Vacuum | -0.086Mpa | Temperature equilibrium | ＜+2.0℃ |
Water pressure | 0.1-0.2Mpa | Compressed air pressure | 0.4-0.7Mpa |
Steam pressure | 0.3-0.7Mpa | Power voltage | Three-phase five-wire AC 380V 50HZ |
Moedel | overail size | chamber size | steam consumption | water consumption | power | N.W.single/double door |
WF-150D(S)(M) | 950*1120*1760 | 700*450*480 | ≤14 | ≤190 | ≤2+18 | 700/750 |
WF-200D(S)(M) | 1175*1120*1760 | 925*450*480 | ≤16 | ≤190 | ≤2+18 | 830/880 |
WF-250D(S)(M) | 1030*1300*1900 | 780*600*600 | ≤18 | ≤200 | ≤2+24 | 980/1050 |
WF-360D(S)(M) | 1250*1300*1900 | 1000*600*600 | ≤25 | ≤210 | ≤2+24 | 1080/1150 |

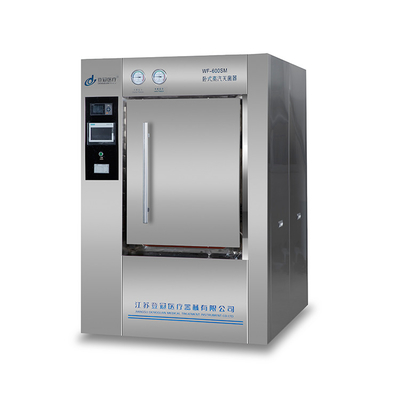

WF-600D(S)(M) | 1440*1310*1900 | 1190*610*910 | ≤30 | ≤220 | ≤3+36 | 1150/1250 |
WF-800D(S)(M) | 1700*1310*1900 | 1450*610*910 | ≤35 | ≤200 | ≤3.5+45 | 1200/1300 |
WF-1000D(S)(M) | 1500*1400*1950 | 1250*680*1180 | ≤42 | ≤200 | ≤3.5 | 1380/1500 |
WF-1200D(S)(M) | 1700*1440*1950 | 1450*680*1180 | ≤50 | ≤200 | ≤4.5 | 1530/1650 |
WF-1500D(S)(M) | 2100*1440*1950 | 1850*680*1180 | ≤60 | ≤200 | ≤4.5 | 1680/1800 |
