Home /Products/Infrared Laser Thermometer/VICTOR 310C Industrial Portable Construction IP54 IR Thermometer Handheld Gun 141*200*60mm

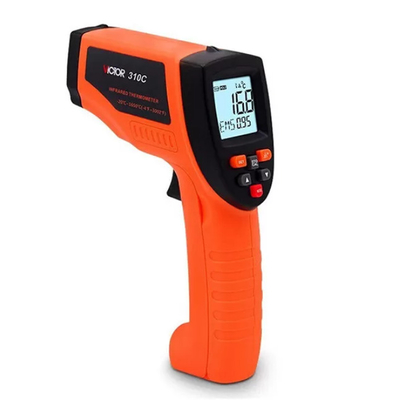

VICTOR 310C Industrial Portable Construction IP54 IR Thermometer Handheld Gun 141*200*60mm

100 Pieces
MOQ
$34.00(100 - 499 Pieces) $32.00(500 - 9999 Pieces) $30.00(>=10000 Pieces)
Price
VICTOR 310C Industrial Portable Construction IP54 IR Thermometer Handheld Gun 141*200*60mm
Features Gallery Product Description Request A Quote
Features
Specifications
Warranty: 1year
Customized Support: OEM, ODM
Model Number: 310C
Color:: Black And Orange
Packing:: Color Box
Accurancy:: ±2.0℃ Or ±2% ( Or ±3.0℃ At 0℃-25℃), Whichever Is Bigger
Measuring Time:: <250ms
Weight:: Approx 270g
Product Size:: 141*200*60mm
Emissivity:: 0.1-1
Power:: 9V
Basic Infomation
Model Number: 310C
Payment & Shipping Terms
Packaging Details: color box
Supply Ability: 100000 Piece/Pieces per Month
Product Description
Products Description
VICTOR 310C Infrared thermometer with Range -50℃~1650℃ Handheld thermometer
Introduction
This infrared thermometer is used for measuring the temperature of the object's surface, which is applicable for various hot,
hazardous or hard-to-reach objects without contact safely and quickly.
This unit consist of Optics, Photo sensor, Signal amplifier, Processing circuit and LCD Display. The Optics collected the infrared
energy emitted by object and focus onto the Sensor. Then the sensor translates the energy into an electricity signal. This signal
will be turned out to be digital shown on the LCD after the signal amplifier and processing circuit.

Accessories
Open the bag, then take the item out, and check below accessories:
1.operation manual 1pc
2.9V battery 1pc
If you found that there’s anything missing or damage please contact your supplier.

Warning & Cautions
1. Warning:
To avoid the potential situation which may cause harm or damage to people, please pay attention to the following instructions:
1). Do not point laser directly at eye or indirectly off reflective surfaces.
2). The unit cannot measure through transparent surfaces such as glass or plastic. It will measure the surface temperature of
these materials instead.
3).Steam, dust, smoke, or other particles can prevent accurate measurement by obstructing by the units optics.
2. Cautions:
Infrared thermometer should be protected for the following:
1). EMF (electro-magnetic fields) from arc welders, induction heaters.
2). Thermal shock (cause by large or abrupt ambient temperature changes allow 30 minutes for unit to stabilize before use).
3). Do not leave the unit on or near objects of high temperature.
Technical Data
Temperature range
-50℃~1650℃
-58℉~3002℉
Distance ratio
50:1
Emissivity
0.10~1.00 adjustable(preset 0.95)
Accuracy
- 50℃~0℃(- 58℉~32℉)±3℃/±5℉ ( take the Max. value)
0℃~100℃(32℉~212℉)±1.5℃/±2.7℉
100℃~1650℃(212℉~3002℉)±1.5%
Repeat Accuracy
Less than 1/3 of basic error
Resolution
0.1℃/℉
Response time
＜250ms
Dual range display
√
MAX/MIN value
√
D-value / Average value
√
High/Low temperature alarm
√
℃/℉ setting
√
Turn off the laser
√
Display hold
√
Back light
√
Auto power off
√
Low battery display
√
Spectral response
8um~14um
Laser power
output＜1mW, wave length 630~670nm, class II
